Security SAST Documentation

Static application security testing (SAST) of a CakePHP 2 application: its code is scanned for patterns that lead to vulnerabilities, such as SQL built from strings, redirects to values of the request or variables printed without escaping, and the findings are written as an A4 PDF report by rule and risk, in the design of the reports of pieceofcake2/report. The exit code fails CI when a finding reaches a risk.

• Rules: what each rule finds, why it matters, and how to fix it, with the checks of the configuration
• Fixing the Findings: the way through a report, from the first scan to a clean CI
• CI with GitHub Actions

It is one of the security checks of pieceofcake2, with pieceofcake2/security-sca (the known vulnerabilities of the Composer packages) and pieceofcake2/security-dast (the running application); pieceofcake2/security-check runs them all.

Two Engines

The rules of this package for CakePHP 2 are written for both engines, and find the same places. Choose one with --engine:

	Semgrep (default)	PHPStan
Runs	in Docker (semgrep/semgrep)	with PHP, installed with this package
Rules	the CakePHP 2 rules of this package, and the PHP rules of the Semgrep Registry (p/php) or others	the CakePHP 2 rules of this package only
Views (.ctp, .php, ...)	yes	yes
Needs	Docker, and the network to download the rules of the Registry	nothing else
Suppress a place	// nosemgrep: <rule>	// @phpstan-ignore <identifier>

Semgrep finds more, with the rules of the Registry; PHPStan runs anywhere PHP does, e.g. where Docker is not allowed. The rules of the Registry are maintained by Semgrep and the community, and are not reviewed by this package.

Requirements

• PHP 8.0+
• Semgrep: Docker. The image semgrep/semgrep is pulled on the first run
• PHPStan: nothing else (phpstan/phpstan is a dependency of this package)
• Google Chrome or Chromium 131+ to print the PDF, and on Linux fonts-noto-cjk for a Japanese report

Installation

composer require --dev pieceofcake2/security-sast

Usage

# Semgrep in Docker
vendor/bin/security-sast --pdf=tmp/security-sast.pdf --language=ja

# PHPStan
vendor/bin/security-sast --engine=phpstan --pdf=tmp/security-sast.pdf

The command prints a summary and the path of the report:

12 findings (5 high, 7 medium) of 8 rules in 3 files (Semgrep 1.180.0). Report: tmp/security-sast.pdf

The exit code is 0 when no finding reaches --fail-on, 1 when one does, and 2 when the scan or the report fails. A finding whose risk is not known fails only with --fail-on=low.

What is Scanned

The paths come from the application, so that they are not written twice. When the project has config/core.php (or app/Config/core.php of the legacy layout) and vendor/autoload.php, the command loads CakePHP as the application does and reads:

• the directory of the application (APP), the paths of the views (App::path('View')) and of the plugins (App::path('Plugin')): the paths to scan
• the packages that Composer installed in the project outside vendor, e.g. plugins/DebugKit: left out, as vendor is
• the extension of the views of AppController ($ext), when it is not .ctp: scanned as views

Otherwise the directories that exist of src, templates and plugins (the modern layout) and app (the legacy layout) are scanned. vendor, tmp, logs, tests, node_modules, app/Vendor, app/tmp and app/Test are left out.

# Only src/ and the views, with the tests
vendor/bin/security-sast --paths=src,templates --exclude=vendor,tmp

The PHP files (.php) and the views are scanned. A view is a file of an extension of the views in a templates/ or View/ directory: with the default ctp,php, templates/Posts/index.php is a view and src/Controller/PostsController.php is not. Add the extensions of your views with --view-extensions:

vendor/bin/security-sast --view-extensions=ctp,php,html

The Configuration

The same load of CakePHP also checks the configuration of the application, as it is in production: the values of Configure after config/bootstrap.php, with the .env files of APP_ENV=prod (--config-env). It finds, e.g., a debug level that is not 0, a Security.salt that is the default of the distribution or a sample of the documentation, or the cipher cookies (see The Configuration). The findings are placed at the line of the setting in core.php, and the cover of the report shows the APP_ENV that was checked. The secrets are compared as their SHA-256 and length; they are not written to the report.

Turn the check off with --config-check=0, e.g. for a project that is not a CakePHP application.

Options

Option	Environment variable	Default
--engine=ENGINE	SECURITY_SAST_ENGINE	semgrep	semgrep or phpstan
--pdf=PATH	SECURITY_SAST_PDF	tmp/security-sast.pdf	The PDF report
--fail-on=RISK	SECURITY_SAST_FAIL_ON	high	The lowest risk that fails: critical, high, medium, low or none
--project=DIR		the current directory	The directory of the application
--paths=LIST	SECURITY_SAST_PATHS	src, templates, plugins, app that exist	Paths to scan, comma separated, relative to the project
--exclude=LIST	SECURITY_SAST_EXCLUDE	see above	Paths to leave out, comma separated; empty for none
--semgrep-config=LIST	SECURITY_SAST_SEMGREP_CONFIG	p/php	Semgrep rules besides those of this package: names of the Registry (p/owasp-top-ten), URLs, or YAML files of the project
--semgrep-image=IMAGE	SECURITY_SAST_SEMGREP_IMAGE	semgrep/semgrep:latest	The Docker image of Semgrep, e.g. a fixed version
--docker=COMMAND	SECURITY_SAST_DOCKER	docker	The Docker command, e.g. podman
--phpstan=PATH	SECURITY_SAST_PHPSTAN	the one of this package	The phpstan script
--view-extensions=LIST	SECURITY_SAST_VIEW_EXTENSIONS	ctp, php and the $ext of AppController	The extensions of the views, comma separated
--safe-view-variables=LIST	SECURITY_SAST_SAFE_VIEW_VARIABLES		Variables that the views may print without h(), comma separated (see the rule)
--config-check=0	SECURITY_SAST_CONFIG_CHECK	1	0 not to check the configuration
--config-env=ENV	SECURITY_SAST_CONFIG_ENV	prod	The APP_ENV of the configuration to check
--language=LANG	SECURITY_REPORT_LANGUAGE	en	en or ja, or a language of --locale-dir
--locale-dir=DIR	SECURITY_REPORT_LOCALE_DIR		<language>.json files that add or replace messages
--title=TITLE	SECURITY_SAST_TITLE	the title of the language	The title of the report
--project-name=NAME	SECURITY_REPORT_PROJECT	the name in composer.json	The project under the title
--note=TEXT	SECURITY_SAST_NOTE		A note on the cover
--settings=FILE	SECURITY_SETTINGS	config/security.php or app/Config/security.php	The settings file

The Settings File

The settings of the security checks of pieceofcake2 can be kept in the project, in config/security.php (app/Config/security.php of the legacy layout). It returns an array with a section for each check, sca, sast and dast, and a report section that they share:

<?php
return [
    'report' => [
        'language' => 'ja',
        'dir' => 'tmp/security',
        'project' => 'Acme',
    ],
    'sast' => [
        'engine' => 'phpstan',
        'failOn' => 'medium',
        'viewExtensions' => ['ctp', 'php', 'html'],
        'safeViewVariables' => ['body_html'],
    ],
];

The keys of a section are the options in camel case (--fail-on is failOn), with arrays for the lists. The report section has language, localeDir, project (the project name), note and dir, the directory of the reports (this one is written to tmp/security/security-sast.pdf). An unknown key of the sast section is an error.

The options win over the environment variables, and the environment variables over the file. Give another file with --settings.

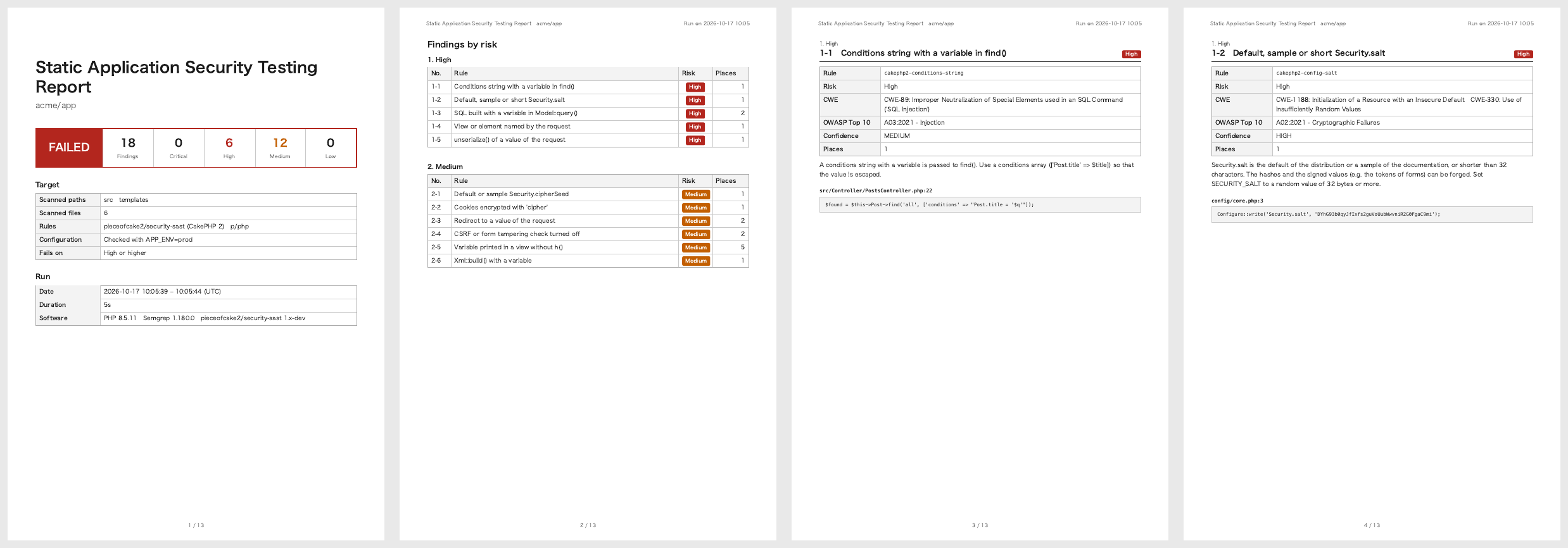

The Report

• Sample report (English, PDF)
• Sample report (Japanese, PDF)

1. Cover: the result, the numbers of findings by risk, the repository, branch and commit, the scanned paths and the number of files, the rules, the APP_ENV of the configuration, the threshold, and the date, environment and software of the run (the engine and its version)
2. Findings by risk: Critical, High, Medium, Low and Unknown; each rule that found places, with their number, and a link to its page
3. A page for each rule: its title, ID, risk, CWE, OWASP Top 10 category and confidence, what it found and how to fix it, then each place (file and line) with its code, up to 100 places

The risks of Semgrep are ERROR (high), WARNING (medium) and INFO (low). The rules of this package set their own risks (see Rules).

Suppressing a Finding

Check the place first: most findings are real. When a place is safe, e.g. the variable of a query is a constant, suppress the finding there, with a comment that says why.

Semgrep:

// The table name is a constant of the model
// nosemgrep: cakephp2-query-concatenation
$this->query('TRUNCATE ' . self::TABLE);

PHPStan, with the identifier of the rule (Rules):

// The table name is a constant of the model
$this->query('TRUNCATE ' . self::TABLE); // @phpstan-ignore securitySast.queryConcatenation

To leave out whole paths, use --exclude. A finding of the configuration is fixed in the configuration, or the check is turned off with --config-check=0.

Your Own Rules

Semgrep runs the YAML files of the project given with --semgrep-config, besides the rules of this package:

vendor/bin/security-sast --semgrep-config=p/php,config/semgrep/app.yml

See the Semgrep rule syntax. The rules of this package, resources/semgrep/cakephp2.yml, are examples.

Troubleshooting

Semgrep failed (exit code 125): Cannot connect to the Docker daemon: Docker is not running, or the user cannot use it. Start Docker, or use --engine=phpstan.

Semgrep failed ... Failed to download configuration: the rules of the Registry (p/php) could not be downloaded. Allow the network to semgrep.dev, or run only the rules of this package with --semgrep-config= (empty).

The configuration could not be loaded: config/bootstrap.php or core.php failed when it was loaded with APP_ENV=prod, e.g. a .env file or a database is needed. The message shows the error. Give the environment of CI with --config-env, or turn the check off with --config-check=0.

Nothing to scan in .: none of src, templates, plugins and app exists in the project. Give the paths with --paths.

The report says that the engine reported errors: a file could not be parsed, e.g. a PHP syntax error. The other files are scanned.

Chrome is needed to print the report: install Chrome or Chromium, or set REPORT_CHROME_BINARY (see pieceofcake2/report).
