The Report

Samples

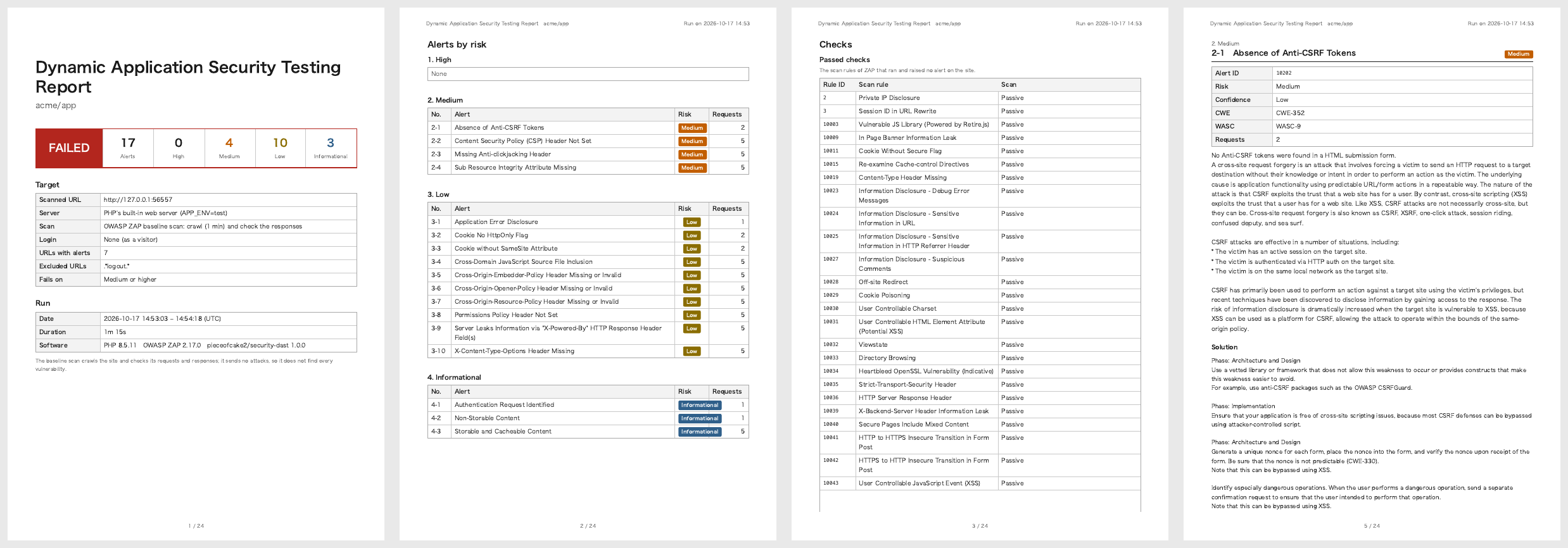

The baseline scan of a page without the security headers, with a form without a token and an error page:

• Sample report of the baseline scan (English, PDF)
• Sample report of the baseline scan (Japanese, PDF)

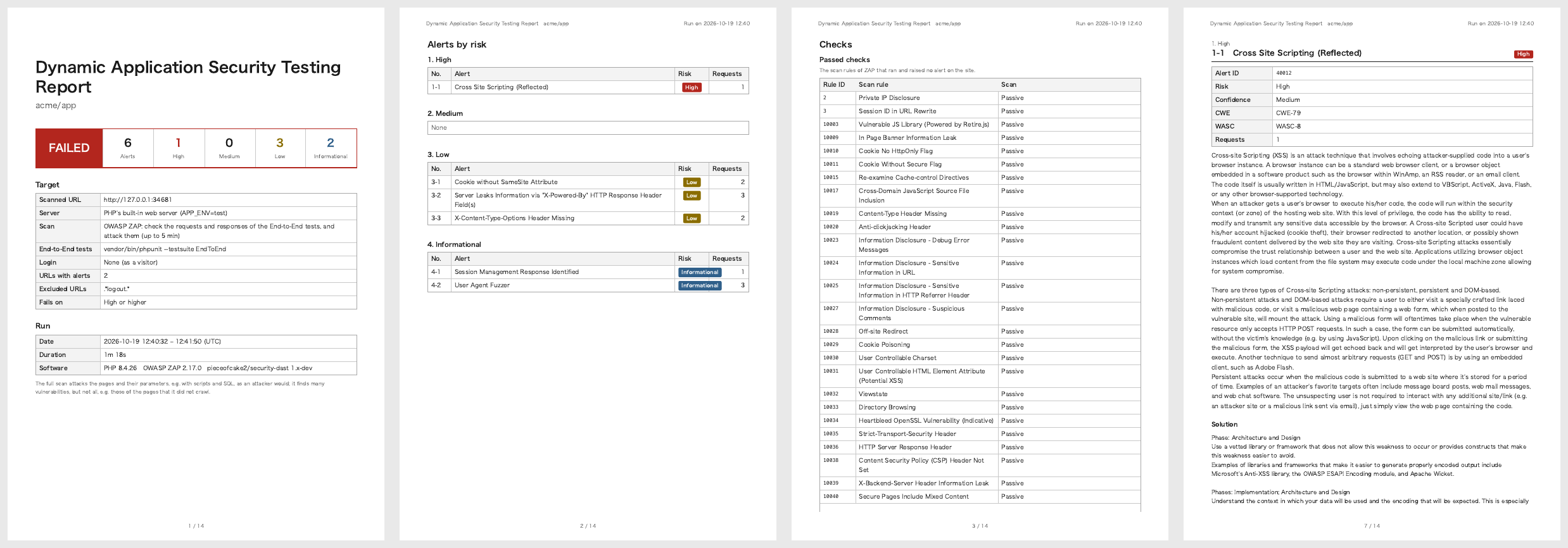

The full scan of a CakePHP 2 application, with an End-to-End test as the scenario: a form with the token of SecurityComponent that prints its value without h(), found as a reflected XSS:

• Sample report of the full scan (English, PDF)
• Sample report of the full scan (Japanese, PDF)

The samples are built from the recorded scans of fictional applications with docs/examples/report-sample.php; the Samples workflow records the scans again with ZAP.

The Pages

1. Cover: the result, the numbers of alerts by risk, the repository, branch and commit, and what was scanned: the URL, the server (the built-in web server and its APP_ENV, or a running application), the scan (baseline or full, its minutes), the End-to-End tests and their result, the user of the login, the number of URLs with alerts, the ignored alerts, the excluded URLs (--exclude) and the threshold; then the date, environment and software of the run (ZAP and its version)
2. Alerts by risk: High, Medium, Low and Informational, also without alerts (None); each alert with its number of requests, and a link to its page. Ignored alerts, when --ignore left some out: each with its ID, name, risk, number of URLs and the reason of the settings file (Ignoring an Alert)
3. Checks: the scan rules of ZAP, by their ID (the ID of their alerts)
   • Passed checks: the rules that ran and raised no alert on the site, passive or active
   • Not run: the active rules that ZAP skipped (not for the technology of the site, no page to attack, or a time limit), and, for the baseline scan, the rules of the active scan, which it does not run. When the active scan reaches its time limit (--scan-minutes), the rules that it had not started are not listed, and the note says so
4. A page for each alert: its name, alert ID, risk, confidence, CWE and WASC, what it means and how to fix it (as ZAP writes them, in the language of the report), each request where it was found, up to 50, and the links: the page of the alert on zaproxy.org first

ZAP lists the rules that ran in the passing rules of its modern report (the data of the jobs of the passive and active scans), and the skipped ones in the statistics of its traditional-json-plus report: the plan writes both to the directory of the scan, besides the alerts. A rule that raised alerts on another site only, e.g. a CDN that the browser of a scenario reached through the proxy, is in neither list.

Each request shows its method and URL, then what ZAP found in it:

Parameter	The parameter, header or cookie of the alert, e.g. data[Contact][message]
Attack	The value that ZAP sent, for the alerts of the full scan
Evidence	What the response showed, e.g. the attack printed as it was sent, or the header that is missing
Other info	More details of ZAP

See Alerts for the fixes of the alerts in a CakePHP 2 application.

Risk and Confidence

The risk is how bad the issue is when it is real: High (e.g. XSS, SQL injection), Medium (e.g. a missing CSP or anti-clickjacking header), Low (e.g. a cookie without SameSite), and Informational (to know, rarely to fix). The confidence is how sure ZAP is that the issue is real: Low, Medium, High or Confirmed. Check an alert of low confidence in the code before fixing it: it can be a false positive.

--fail-on fails the run on a risk, whatever the confidence:

--fail-on	Fails on
high (default)	High
medium	High and Medium
low	High, Medium and Low
info	Every alert
none	Nothing: the report only

For an existing application, start with --fail-on=none, fix the alerts of the report, then raise the threshold.

Ignoring an Alert

Fix the alerts first: most of them are fixed once for the whole application, in AppController or the web server (Alerts). When an alert does not apply, leave it out of the report with its ID:

vendor/bin/security-dast --ignore=10038,10020

• An ID leaves out its variants too: 10038 leaves out 10038-1.
• The IDs are those of the report (Alert ID) and of the alerts of ZAP.
• The report still lists the ignored alerts that the scan raised, so that they are not forgotten: their IDs on the cover, and a group "Ignored alerts" with the name, risk, number of URLs and reason of each. They do not fail the scan, and the summary of the command counts them.

The alerts to ignore are those of the scan environment, not of the application: e.g. the security headers that a proxy in front of production adds, which the built-in web server of the scan does not have, or the X-Powered-By of the PHP of CI. Give the reason of each ID in the settings file: the report shows it with the alert.

'dast' => [
    'ignore' => [
        '10038' => 'The load balancer of production adds the CSP; checked on staging with --url',
        '10020' => 'The load balancer of production adds X-Frame-Options; checked on staging with --url',
    ],
],

A list of IDs without reasons, 'ignore' => ['10038', '10020'], works too; give either a reason for every ID or none, as PHP numbers the IDs without a key after those with one. --ignore and SECURITY_DAST_IGNORE take IDs only, and replace the IDs of the file.
